Draper Access E, 10′, NTSC, Contrast Grey XH800E, 110 V, with Quiet Motor & Low Voltage Controller Projector Screen Newest For Sale

An ideal fit for small- to medium-sized spaces, the Access E electric projection screen works in boardrooms, universities, home theaters, or mid-sized training rooms. This free-hanging, fiberglass-backed viewing surface maintains flatness thanks to the weight of the screen and bottom dowel. Placement of the ceiling-recessed case during the initial phase of construction eliminates job site damage and allows for installation of the screen at a later time. The bottom closure panel provides access to all components for easier service and maintenance.

Product Specs

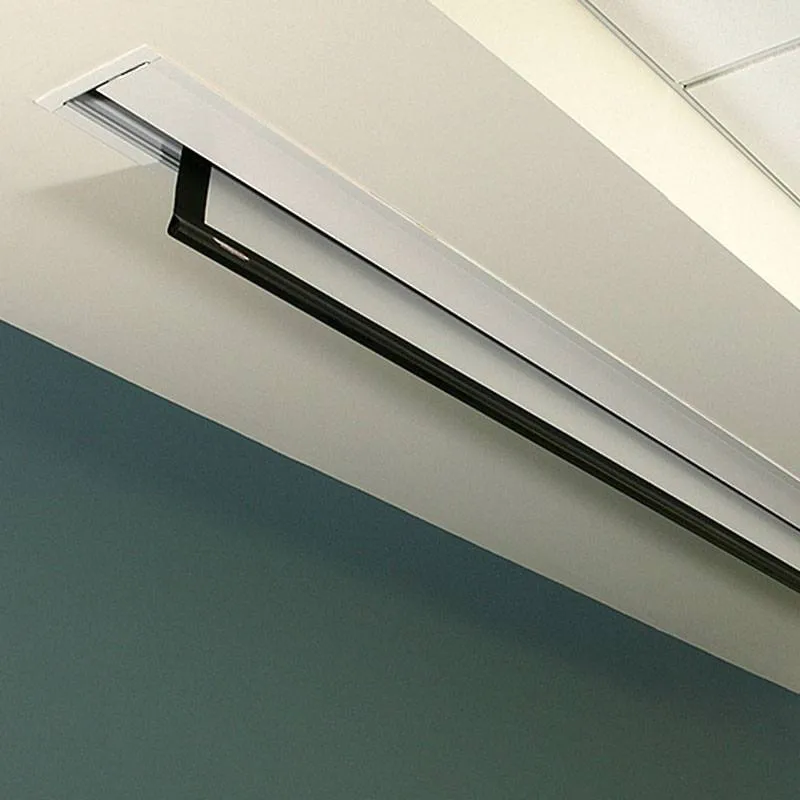

•  Case dimensions are 7-3/8′ high x 8-1/16′ deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 16′ (488 cm) wide, depending on surface selection.

•  The standard Access is a good alternative whenever the above-ceiling space permits. Access Fit is recommended when space is at a premium.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.

•  Sliding brackets on top of the case allow for adjustments when mounting.

•  Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage, video interface or other controls can be built into housing for access from below ceiling.

•  White case standard, black available upon request.

•  Custom sizes available.

•  5 Year Warranty

Product Downloads

Low Voltage Controls Wiring Instructions (110V)

Low Voltage Controls Wiring Instructions (220V)

Access – 110V Instructions

Access – 220V Instructions

Care and Maintenance Instructions
