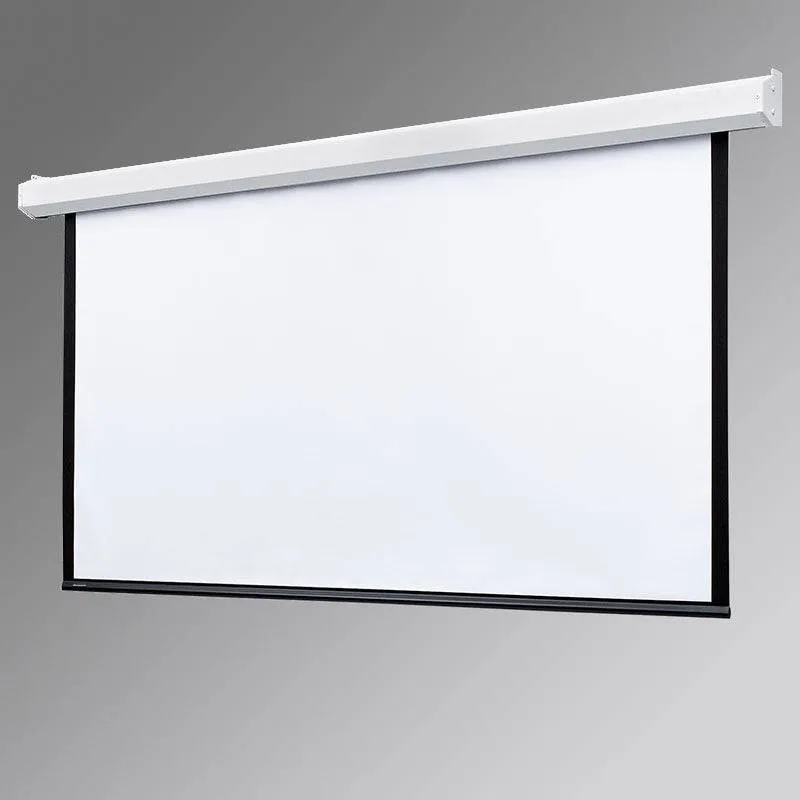

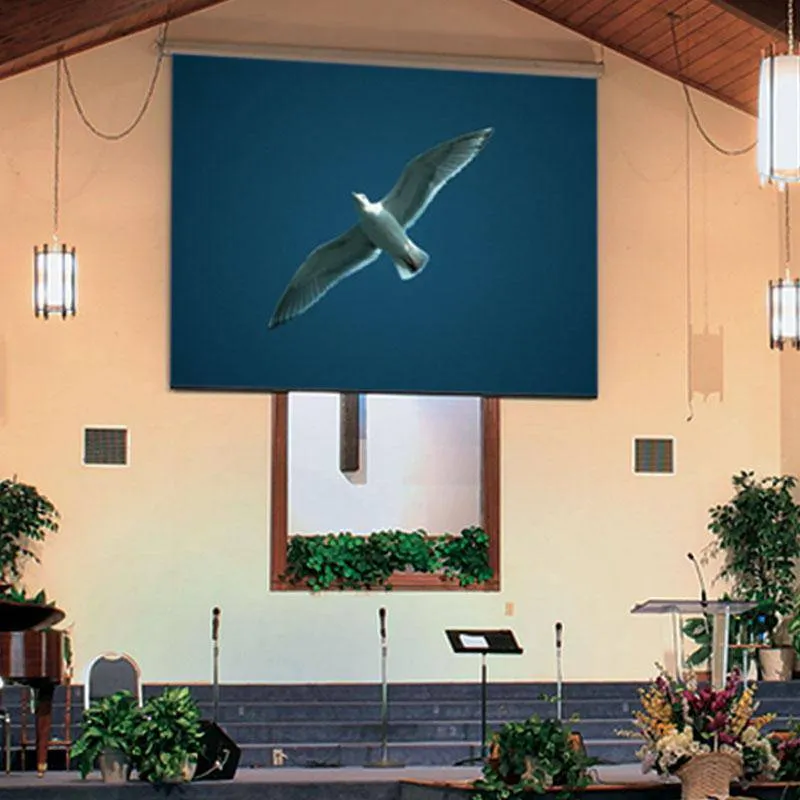

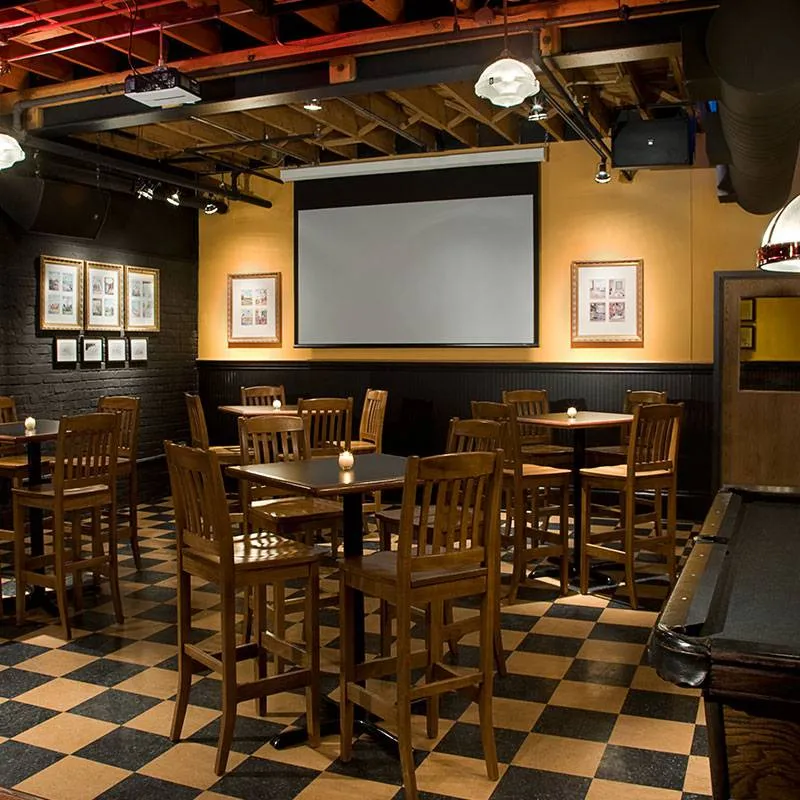

The wall- or ceiling-mounted, Targa electric projection screen is a popular choice for auditoriums, conference and lecture halls, hospitals, hotels, boardrooms, and churches. Housed in a pentagonal steel case with matching endcaps that form universal mounting brackets makes installation of the Targa easy, whether wall- or ceiling-mounted. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to the weight of the screen and bottom dowel. The motor is mounted inside the roller providing a clean, low-profile appearance.

Product Specs

•  Case dimensions 5-7/8’h x 5-1/4′ d (15 cm x 13 cm) including endcaps with universal mounting brackets. Optional built-in controls and extra drop may increase case length. Contact Draper^® for Dimensions.

•  Housed in pentagonal steel case with a scratch-resistant white polyester finish (standard), black available upon request. Includes matching endcaps with universal mounting brackets.

•  Larger sizes require a different case design and can be found in Targa XL.

•  Maximum image width up to 12′ (366 cm) wide, depending on surface selection.

•  NTSC, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.

•  Black drop standard, depending on screen size. Extra drop above image area available upon request.

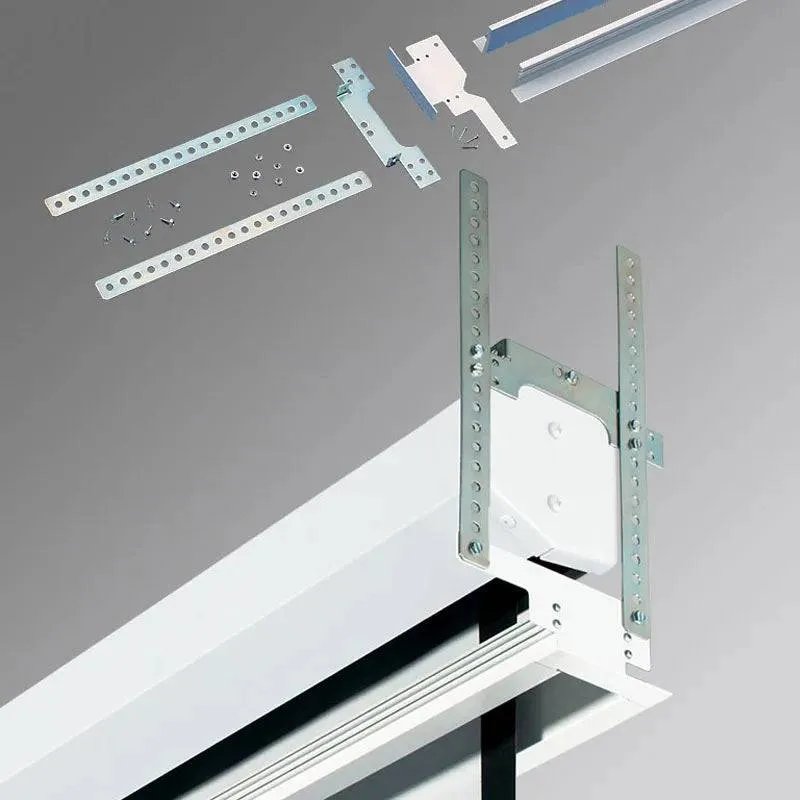

•  Optional floating wall brackets grip the screen securely anywhere along the back of the case, and are barely visible.

•  Available with ceiling trim kit for ceiling-recessed installation. An additional 12′ (30 cm) top drop is recommended for ceiling-recessed installation.

•  Includes one 110-120V, 3-position switch (standard). Other control options are available.

•  Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP).

•  Custom sizes available.

•  5 Year Warranty
