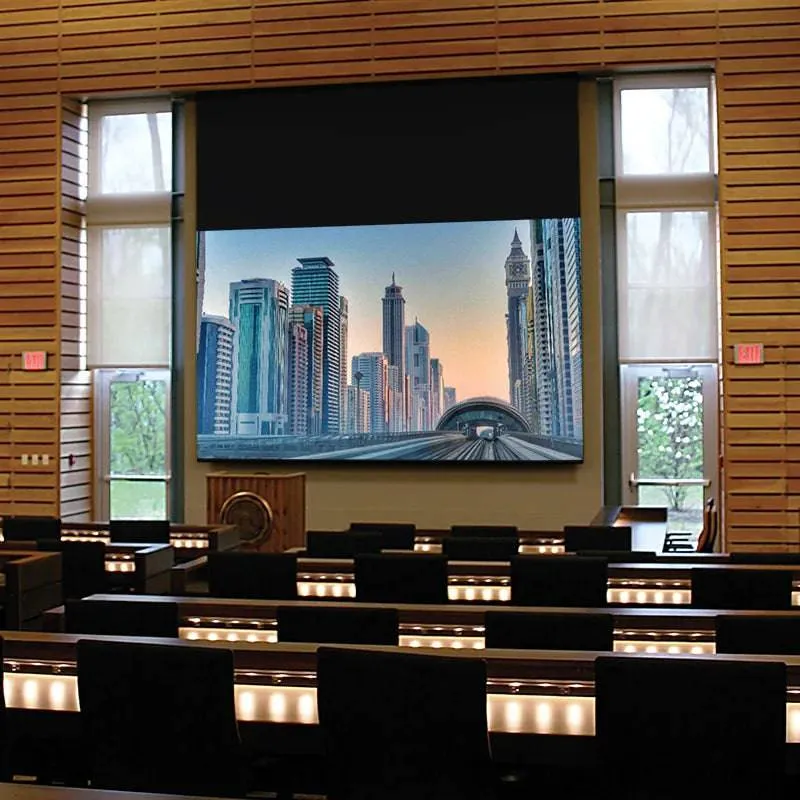

The free-hanging, wall- or ceiling-mounted Targa XL electric projection screen features our most popular choice for auditoriums, conference and lecture halls, hospitals, hotels, boardrooms, and churches. Free-hanging screens maintain flatness due to the weight of the screen and bottom dowel. Housed in an attractive white, scratch-resistant aluminum case. Matching endcaps form universal mounting brackets, making installation of the Targa XL easy. Motor is mounted inside the roller providing a clean, low-profile appearance.
Product Specs
- Case dimensions: 6-3/4′ h x 6-3/4′ d (17 cm x 17 cm) including endcaps with universal mounting brackets.

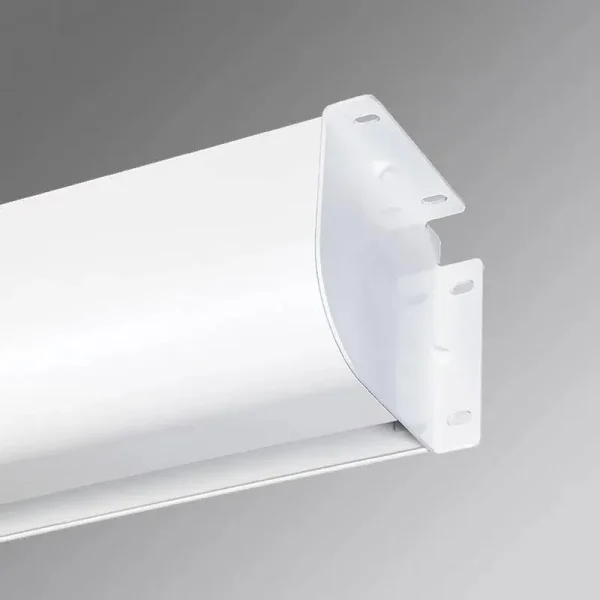

- Housed in a fabricated extruded aluminum case with curved front, L-shaped back/top cover, and scratch-resistant white polyester finish (standard), black available upon request.
- Maximum image width up 16’ (488 cm) wide, depending on surface selection.
- NTSC, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.
- Black drop standard, depending on screen size. Extra drop above image area available upon request.
- Includes one 110-120V, 3-position switch (standard). Other control options are available.
- Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP).
- Custom sizes available.
- UL Listed.
| Part number: | 116343 |
| Surface material: | Matt White XT1000E |
| Image Format: | HDTV |
| Diagonal size: | 193′ |
| Image/Viewable area: | 94 1/2′ x 168′ |
| Image/Viewable area 2: | |
| Overall size: | 99 1/2′ x 172′ |
| Standard 12′ black drop: | |
| Case length: | 180 7/8′ |
| Height range: | |
| Closed dimensions: | |
| Product weight: | 193 pounds |
| Shipping weight: | 243 pounds |
