Draper Ultimate Access E, 15′, NTSC, Contrast Grey XH800E, 110 V Outlet Countdown Package

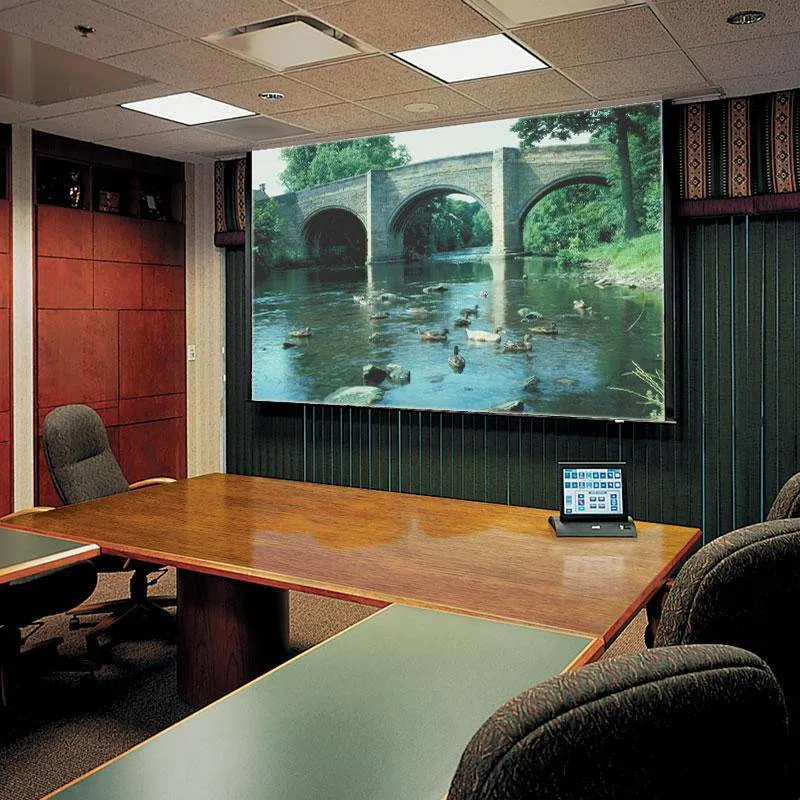

Complete concealment and smooth clean design makes the free-hanging, ceiling-recessed Ultimate Access E electric projection screen ideal for boardrooms, mid-sized training rooms, universities, or home theaters. During use, a second motor opens the lower panel upward into the case to allow the screen to descend into the room. Retracted, the projection screen completely conceals behind a smooth, lower panel in the ceiling with no exposed screw heads or fasteners. Placement of the ceiling-recessed case during the initial phase of construction eliminates job site damage and allows for installation of the screen at a later time.

Product Specs

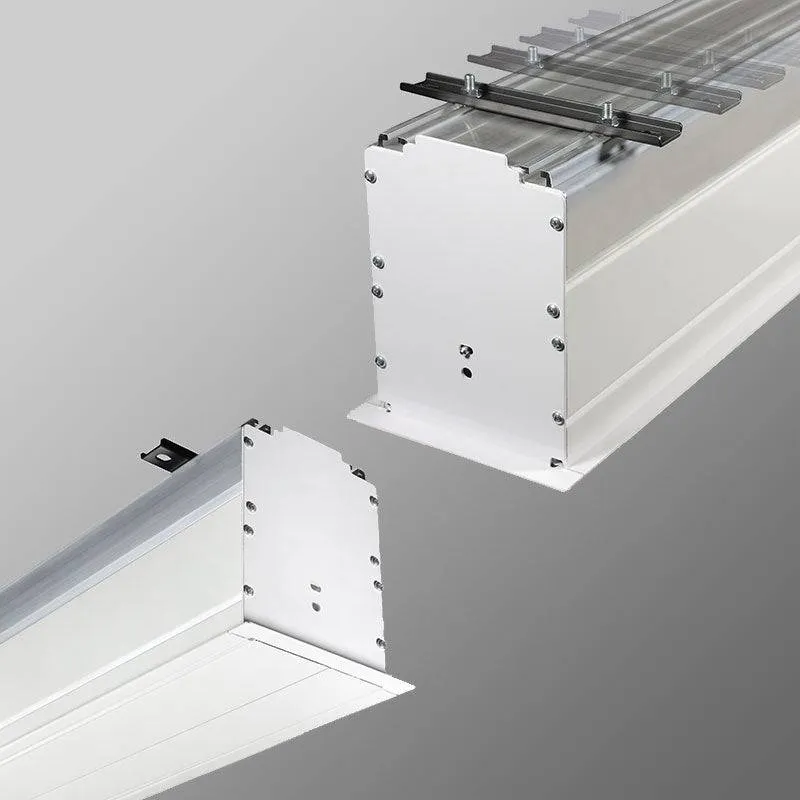

•  Case dimensions are 9-7/8′ high x 8′ deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.

•  Maximum image width up to 12′ (366 cm) wide, depending on surface selection.

•  NTSC, HDTV AND 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens.

•  Sliding brackets on top of the case allow for adjustments when mounting. Sliding brackets inside case accommodate different size screens.

•  Bottom closure panel detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.

•  Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.

•  Independently motorized ceiling closure opens into the case.

•  Quick-connect wiring allows for early installation of the case with the addition of the screen later.

•  Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.

•  Low voltage video interface or other controls can be built into the housing for below ceiling access.

•  White case standard, black available upon request

•  Custom sizes available.

•  UL Listed.
