Draper Ultimate Access XL V, 278, 16:10, CineFlex White XT700V, 110 V Collections For Sale

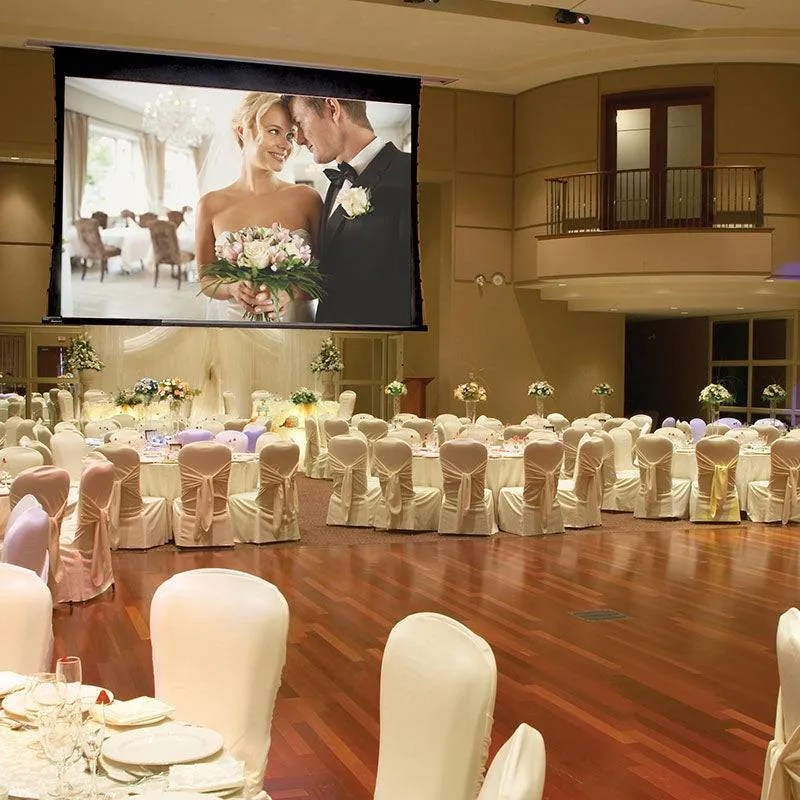

Ideal for major venues, conference centers, ballrooms, or university classrooms, the ceiling-recessed, tab-tensioned Ultimate Access XL V electric projection screen accommodates larger screen sizes. Screen completely retracts and conceals behind a lower panel with no exposed screw heads or fasteners. During use, a second motor opens the lower panel upward into the case and the screen descends into the room. RF welded tabs create a more durable seal eliminating separation and stickiness for a perfectly flat viewing surface with better image quality. Placement of the ceiling-recessed case during the initial phase of construction eliminates job site damage and allows for installation of the screen at a later time.

Product Specs

•  Case dimensions are 14-1/16′ high x 10-3/8′ deep (36 cm x 26 cm), includes trim flange.

•  Built-in controls may increase case length. Mounting brackets may add to case dimensions. See Submittal in the Technical Documents tab for details.

•  Maximum image width up to 22′ (671 cm) wide, depending on surface selection.

•  Image area fully framed with black. Standard 12′ (30 cm) black drop at top of viewing area.

•  Adjustable or removable hoisting brackets included for easy lifting during installation.

•  Sliding brackets on top of case allow unlimited adjustment for mounting. Sliding brackets inside case accommodate different size screens.

•  Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.

•  Independently motorized ceiling closure opens into the case

•  Junction box and 110V three-position wall switch included for recessed wall mounting.

•  Low voltage video interface or other controls can be built into the housing for below ceiling access.

•  White case standard, black available upon request

•  Custom sizes available

•  UL Listed.
